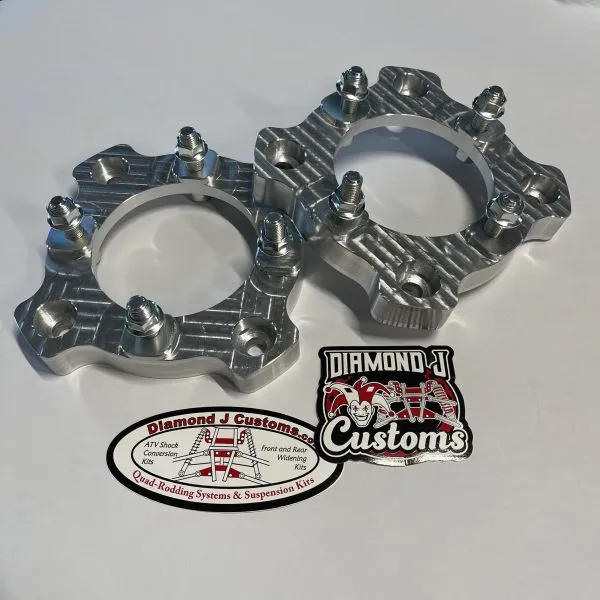

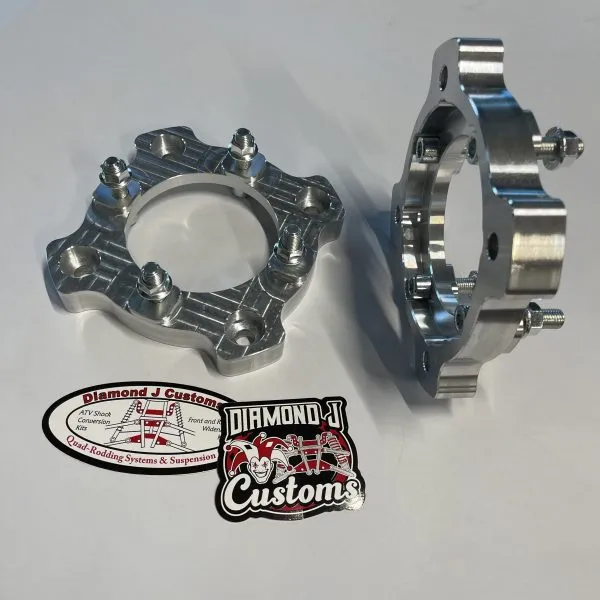

4/156mm to 4/110mm Conversion Wheel Spacers, 1″ thick

These 1″ thick spacers combine the conversion from the 4/156mm bolt pattern, to the 4/110mm bolt pattern.

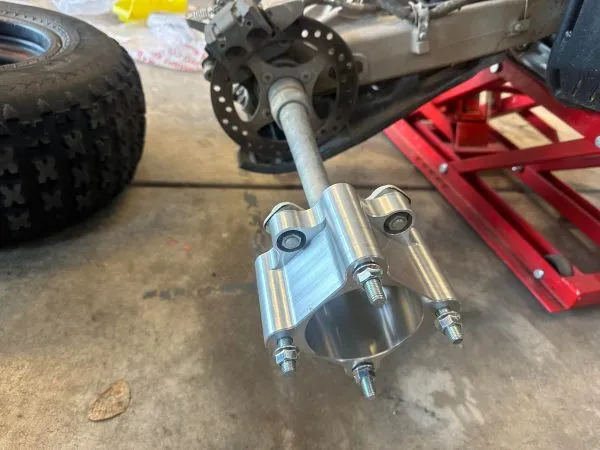

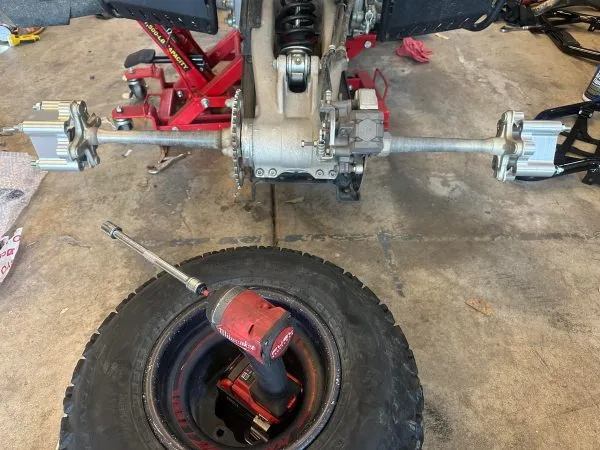

They provide 1 inches of spacing per side (2 inches total). They include all necessary hardware. The nuts provided can be used to secure these spacers to the ATV so you can use your existing lug nuts to attach the new wheels to the spacers.

As you can see from the design, the weight has been optimized. They only weigh 1.6lbs (.7kg) each including the steel studs and nuts.

We generally do not recommend wheel spacers for use on the front of ATV’s.  Front wheel spacers cause the wheels to go through a forward and backward motion when going through the steering range, which can cause force feedback to the rider and a tendency to steer itself.These wheel spacers are made from Extruded Billet 6061-T6511 aluminum.  Heat treated for added strength.

Measure the distance across opposite studs on your hubs to determine if these will fit. 156mm is just under six and one-eighth inches (6.14″). 110mm is just under four and three-eighth inches (4.33″).
